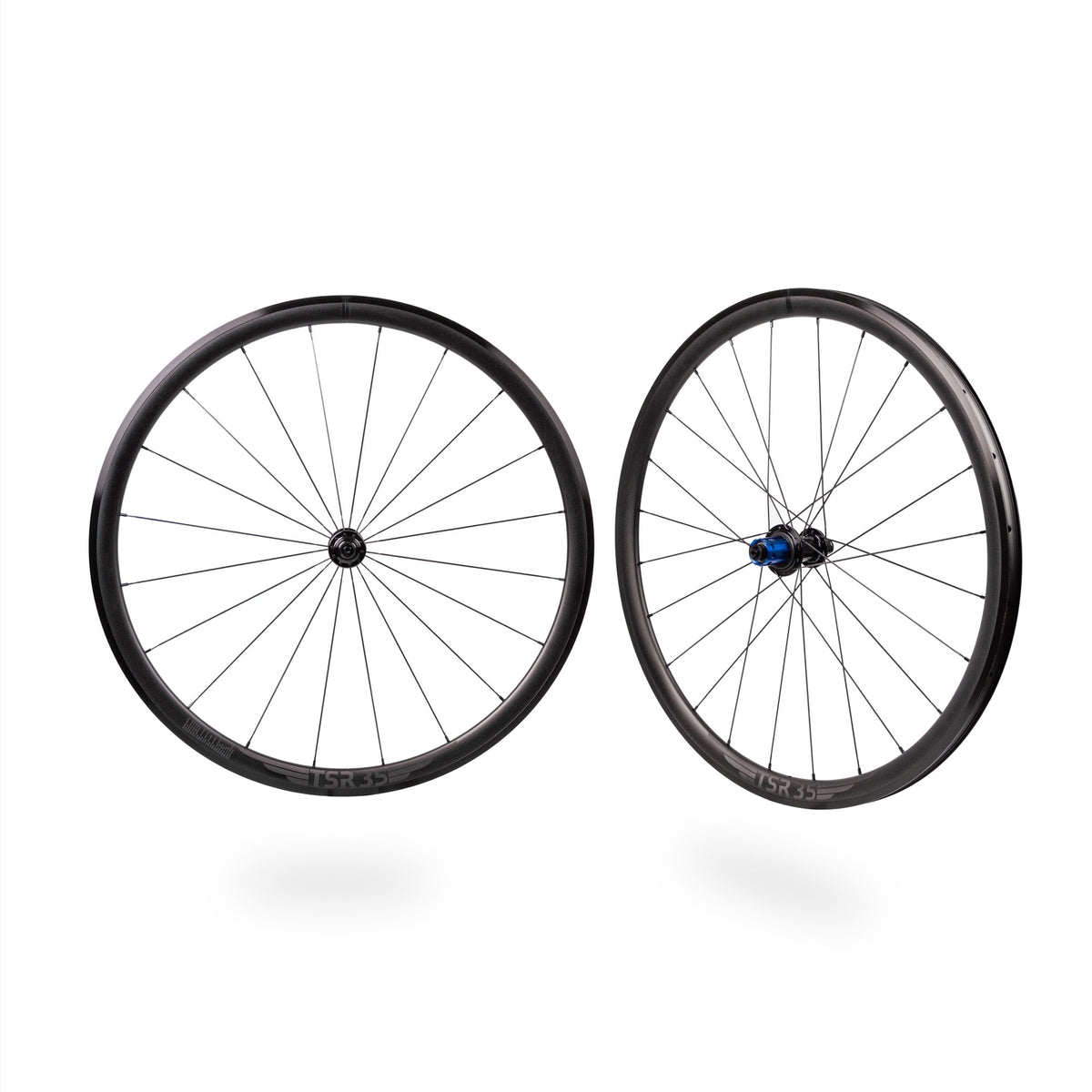

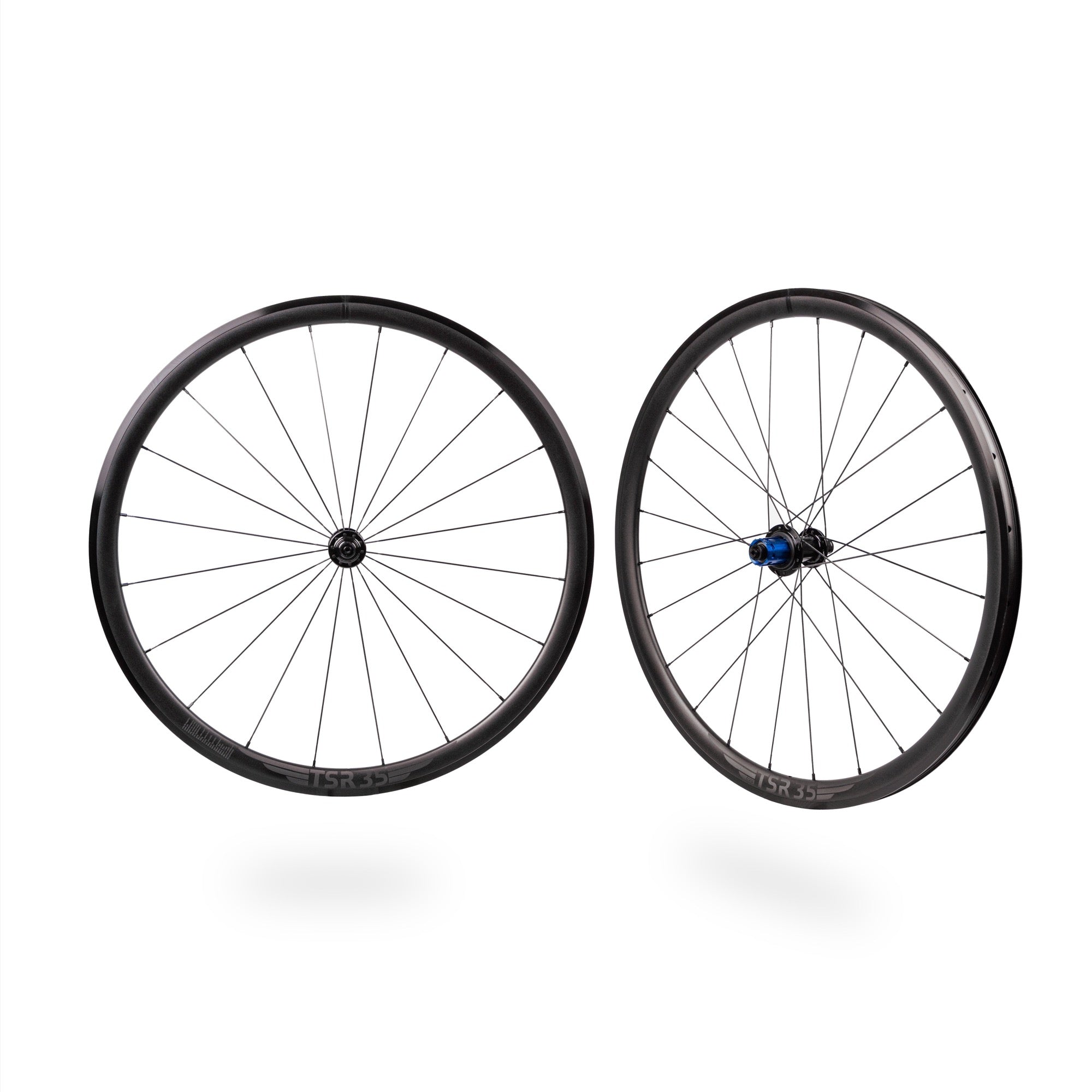

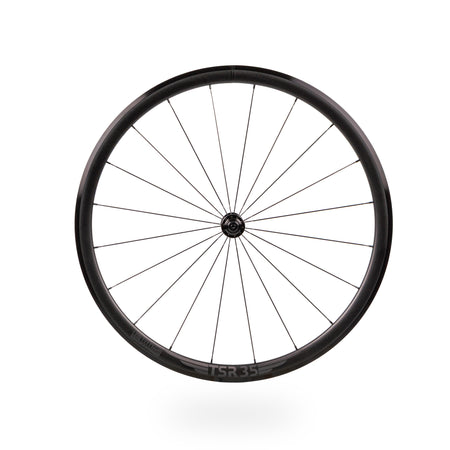

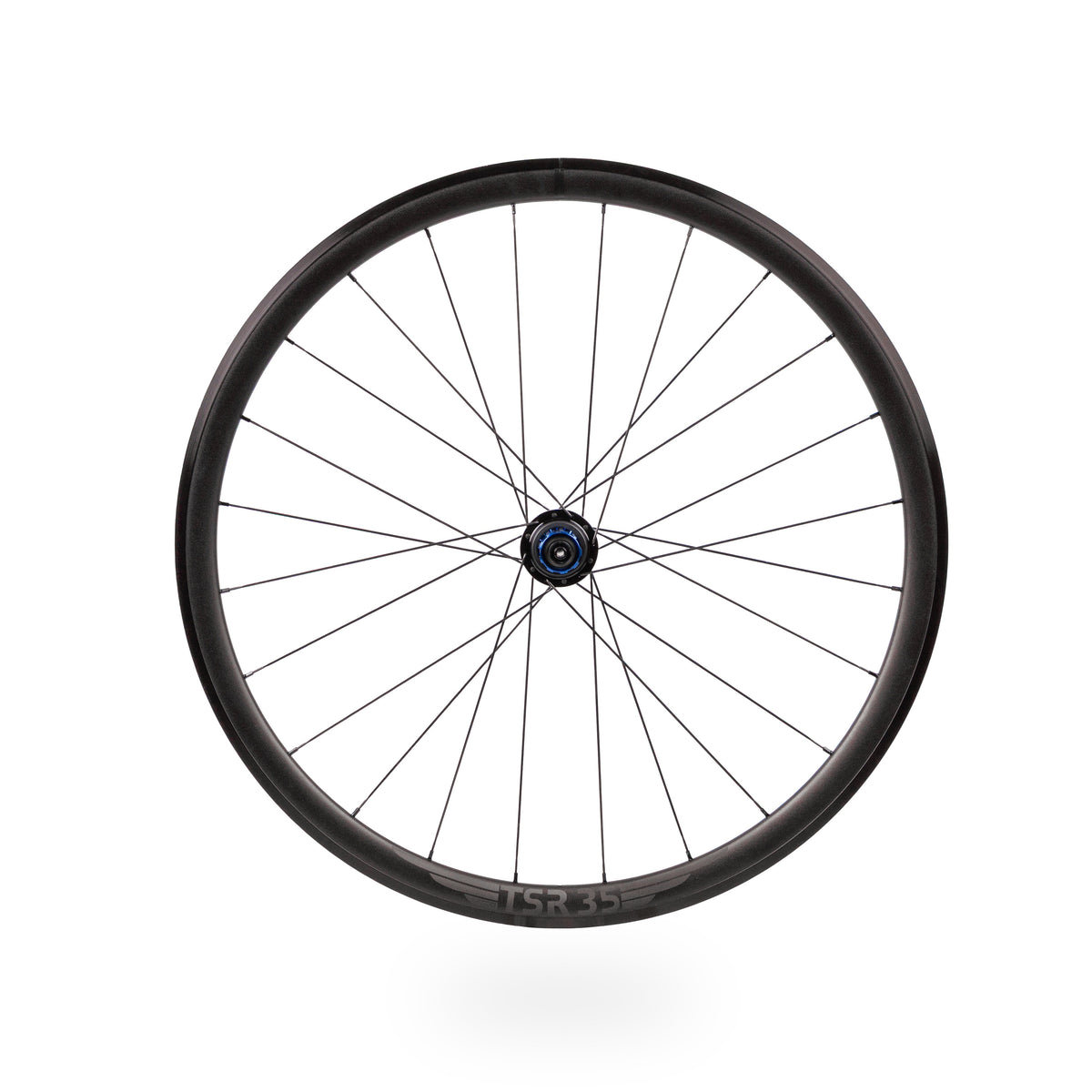

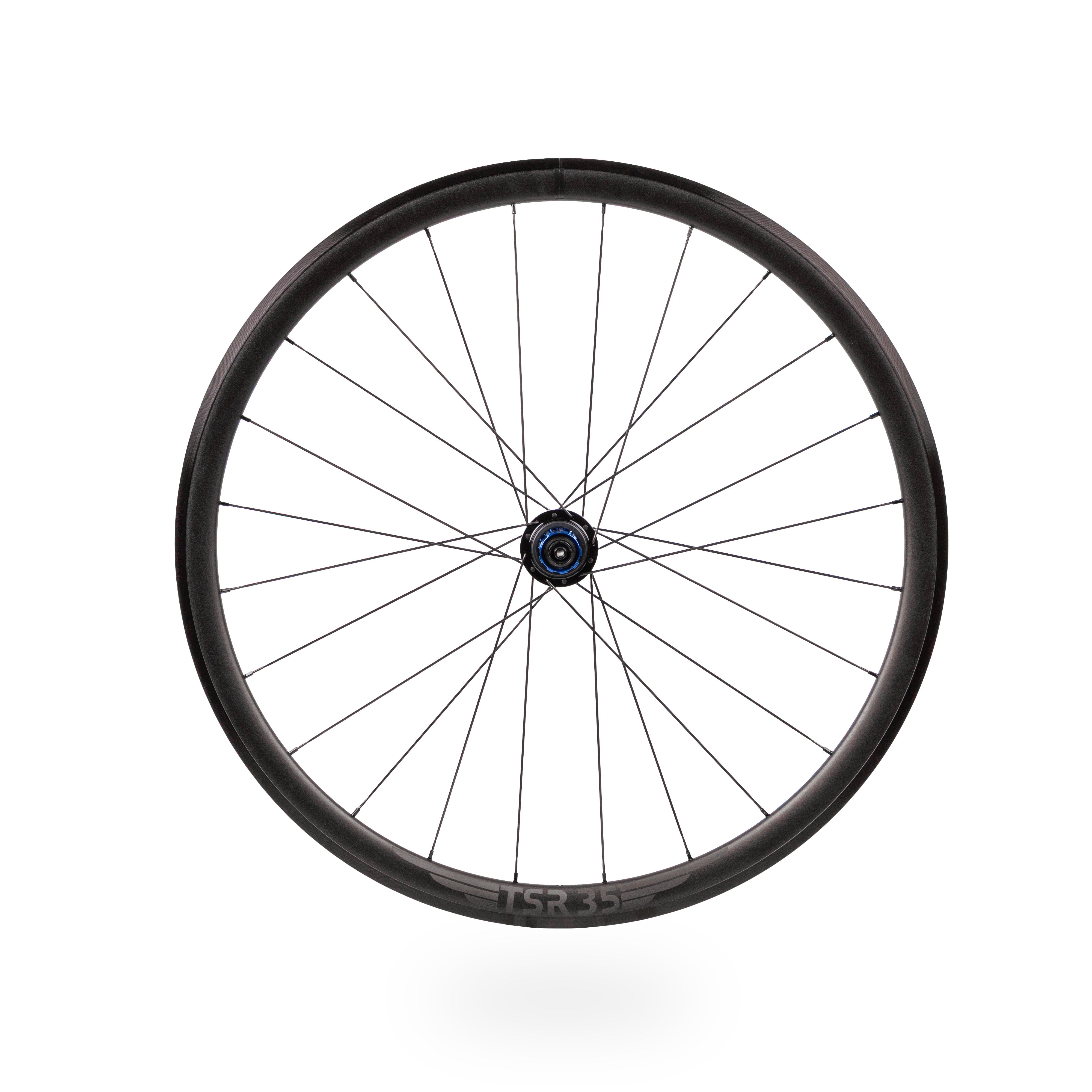

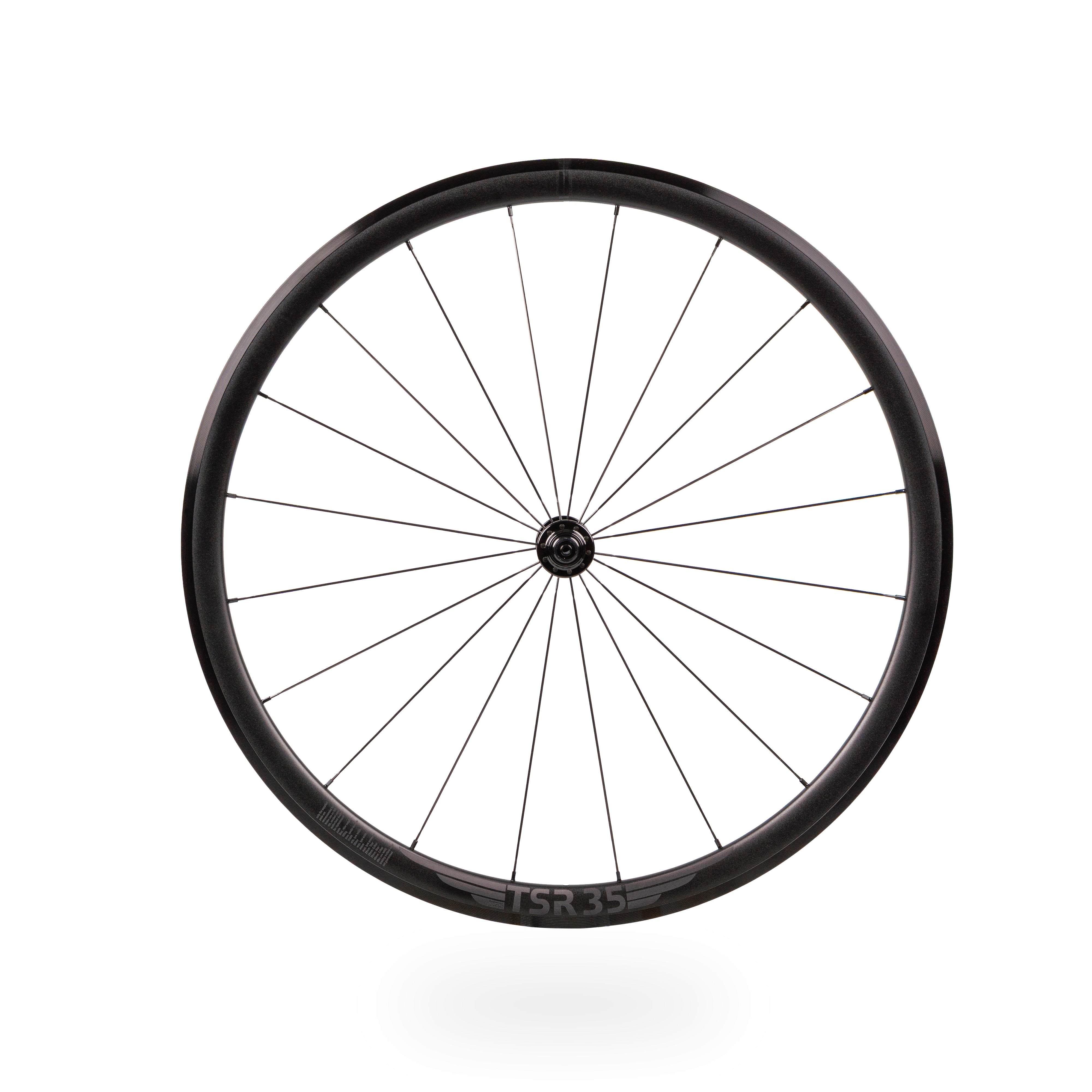

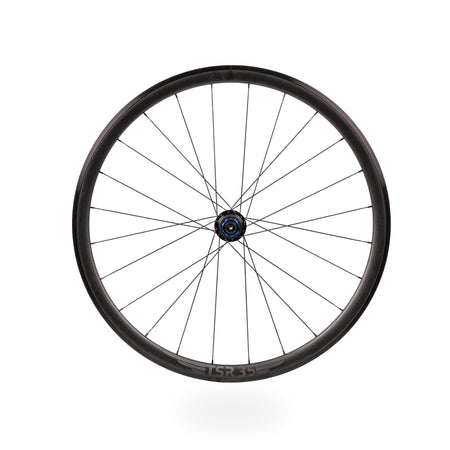

Versatility is the keyword for this TSR 35. It is a unique aluminium wheel with a design that has changed everything since its launch. When you are looking for a wheel that can do it all without being caught out, the TSR 35 is one of the best choices. The Mag hub has the best quality/price ratio you can get for a rim brake hub, and it has been our best seller for years. The hub is CNC machined in our factory from aerospace grade aluminium, thus demonstrating increased fatigue strength and low weight. The anodising ensures a great look and prevents corrosion, even under the toughest circumstances. Assembled and adjusted by hand in Buggingen, Germany, the TSR 35 boasts the highest quality standards—guaranteed! The CX-ray aero spokes will perfectly match the aerodynamic 35mm high rim, allowing you to attack long straights without any fear. Additionally, their low weight enables you to accelerate on even the steepest climbs. Its lateral stiffness will make your trajectory extremely precise in the fastest curves, and its efficient braking performance will make you safer. The rim is double anodised with a lasered logo; this modern design will appeal to those who are looking for an up-to-date set-up or who simply want to refresh an old bike. The brake surfaces are also fully black and anodised, which gives them a carbon look. In order to maintain the quality of the surfaces and the braking power, it is important to fit the supplied brake pads and properly adjust them. With normal wear, the brake surfaces will eventually turn grey. Typical for Tune, this wheel is available in seven colours for the hub and the nipples to make your bike as unique as you are. Be careful, as you might not want to switch back to carbon wheels!
| Weight wheelset | 1530g |
| Colours | black, silver, red |
| Hub type | Mig 20 holes and Mag 24 holes with Enduro Bearings options. |
| Axle standard | front: 100x5mm, rear: 130x5mm |
| Spokes | 20pcs front and 24pcs rear SAPIM CX-Ray |
| rim height | 35mm |
| rim inner width | 19,9mm |
| Rim outer width | 24mm |
| Rim standard | 700c clincher |
| Tubeless ready | Yes |
| max. pressure | 7 bar |
| Nipples | SAPIM colored anodized, double square, Polyax, Secure Lock |
| Valve type | 60mm Tune Tubeless Valve or similar type |
| Tyres | 23mm to 40mm |
| Warranty | 10 Jahre für Nabenkörper, Freilaufkörper, Achse und Endkappe, lebenslange Garantie für die Kugellager Keramik XD-15. Verschleißteile sind nicht abgedeckt. |
| Max. system weight | 110kg |
| notes | Please use the recommended brake pads to ensure durability and reliability for more information please refer to the user manual |
| Scope of delivery | wheel and packaging and brake pads, no valves or rim tape |
