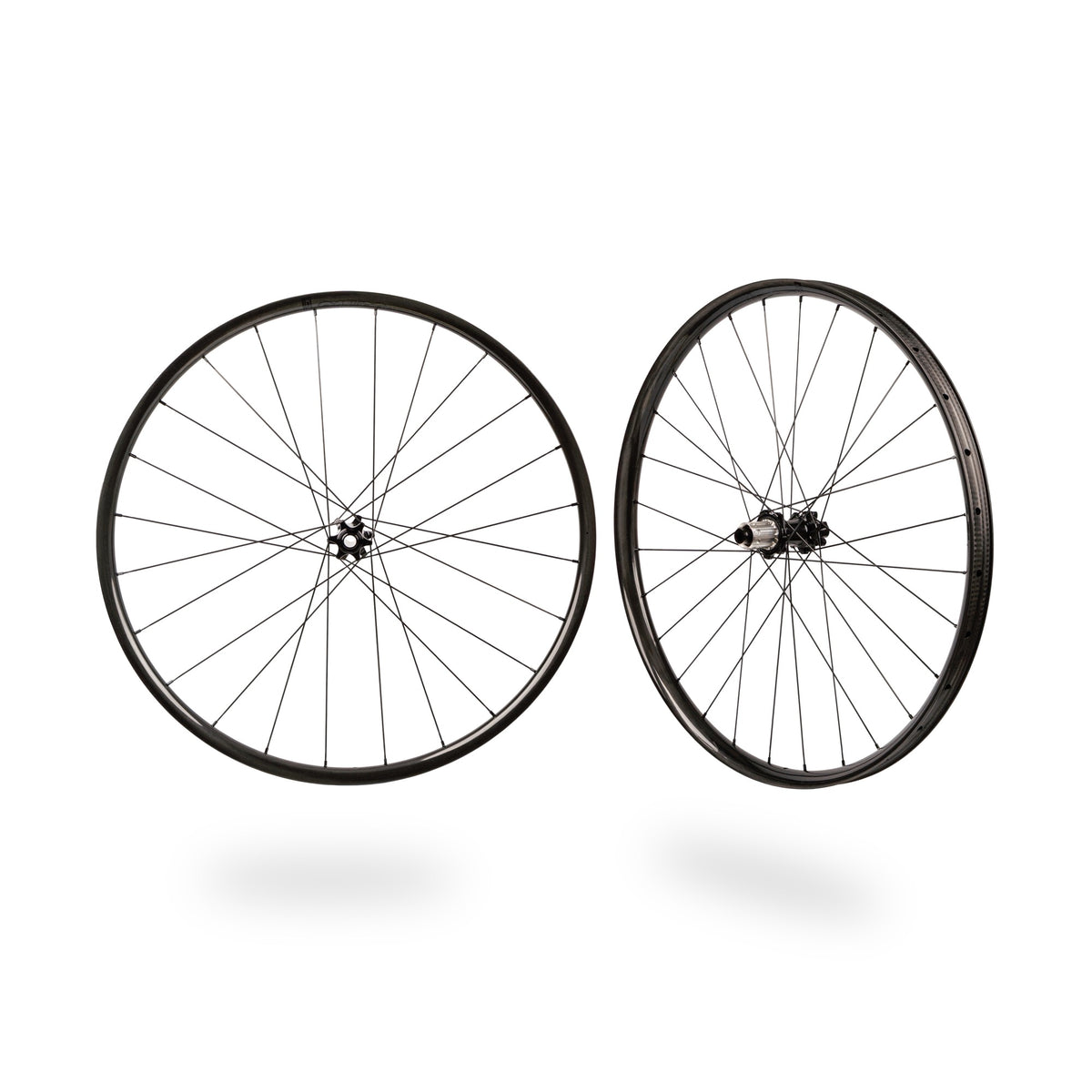

NANO XC
Nano XC is our absolute high-end carbon wheelset for MTB. For this wheelset, we have teamed up with a well-known player in the field of lightweight rims. The rim is manufactured in cooperation with Duke and has a modern 30mm internal width. Together with our brand-new Nano hub, which is not only lightweight but also features a completely new design and is particularly stable, this wheelset is the choice for top-class racers and anyone who wants to take their performance to a new level.
Highlights:
- Tune Nano Boost hub with 138 engagement points, improved seals, heat treated steel pawls and easily adjustable axial play, 6-bolt disc brake mount.
- You have the choice between Enduro Bearings ABEC-5 steel bearings or Enduro Bearings XD-15 ceramic bearings with a lifetime warranty.
- Co-developped Duke carbon rim with 30mm internal width, hookless.
- Sapim CX-Ray spokes (24 front, 28 rear), external nipples.
- Hand-assembled here on-site in Buggingen, Germany.
- Tubeless Ready: yes
- 10-year warranty on the hub (excluding wear parts)
- Weight: 1240g (+/- 3%)
Nano XC is the new benchmark when it comes to lightweight MTB wheels. Despite its low weight, this wheelset makes no compromises in terms of durability. With its 24-28 spoke hole combination, it is ideal for racers and competitive hobbyists. This combination offers a perfect mix of comfort, grip, and stiffness during acceleration. With this wheelset, there are no more excuses!
| Weight wheelset | 1240g (+/- 3%) |
| Colours | black, red, silver |
| Hub type | Nano Boost 6-loch mit POEtry 138 Technologie, 138 Einrastpunkte und Optionen für Enduro-Bearings Lager. Freilauf verfügbar: HG, XDR, Microspline. |
| Axle standard | front: 110x15mm, rear: 148x12mm |
| Brake interface | 6-bolt disc-brake interface |
| Spokes | 24pcs front and 28 rear SAPIM D-Light |
| rim inner width | 30,5mm front & rear |
| Rim standard | 622x30 |
| Tubeless ready | Yes |
| max. pressure | 2,3 bar |
| Nipples | SAPIM colored anodized, double square, Polyax, Secure Lock 16mm |
| Valve type | 35mm Tune Tubeless Valve (delivered with the wheelset) |
| Tyres | 2.1 to 2.5" |
| Warranty | 10 years for the rims, hub bodies, freewheel bodies, axle, and end caps, lifetime warranty for the ceramic XD-15 ball bearings. Wear parts are not covered. |
| Max. rider weight | 100kg |
| Max. system weight | 115kg |
| Scope of delivery | wheels and packaging, valves, rim tape |
